KF560C36BBEK2-64
64GB (32GB 4G x 64-Bit x 2 pcs.)
DDR5-6000 CL36 288-Pin DIMM Kit
FEATURES

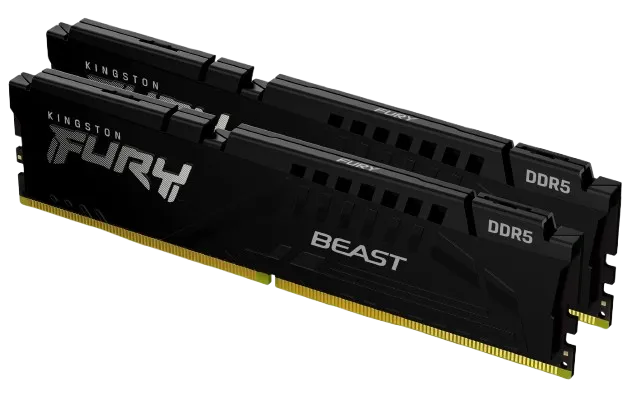

Kingston FURY KF560C36BBEK2-64 is a kit of two 4G x 64-bit
(32GB) DDR5-6000 CL36 SDRAM (Synchronous DRAM) 2Rx8,
memory module, based on sixteen 2G x 8-bit FBGA components per
module. Each module kit supports AMD® EXPO v1.0 and
Intel® Extreme Memory Profiles (Intel® XMP) 3.0. Total kit
capacity is 64GB. Each module has been tested to run at
DDR5-6000 at a low latency timing of 36-38-38 at 1.35V. The
SPDs are programmed to JEDEC standard latency
DDR5-4800 timing of 40-39-39 at 1.1V. Each 288-pin DIMM
uses gold contact fingers.
FACTORY TIMING PARAMETERS
• Default (JEDEC): DDR5-4800 CL40-39-39 @1.1V
• EXPO Profile #0: DDR5-6000 CL36-38-38 @1.35V
• EXPO Profile #1: DDR5-5600 CL36-38-38 @1.25V
• XMP Profile #1: DDR5-6000 CL36-38-38 @1.35V
• XMP Profile #2: DDR5-5600 CL36-38-38 @1.25V
• Power Supply: VDD = 1.1V Typical
• VDDQ = 1.1V Typical
• VPP = 1.8V Typical
• VDDSPD = 1.8V to 2.0V
• On-Die ECC
• Height 1.37” (34.9mm), w/heatsink
