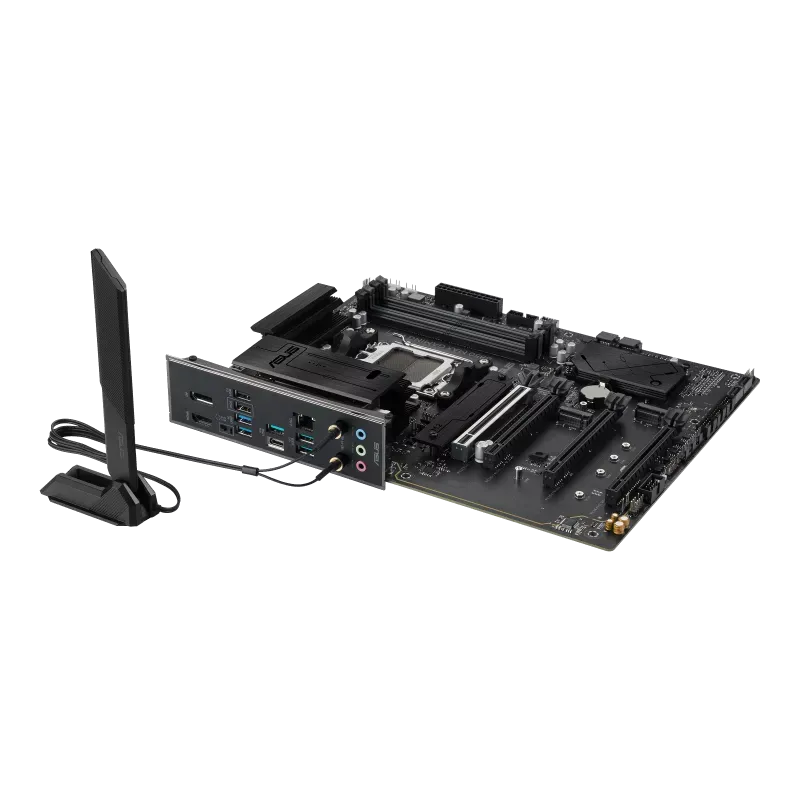

ASUS B850 MAX Gaming WiFi AMD Ryzen AM5 Motherboard, DDR5, PCIe 5.0, WiFi 6E
AED1,018
Brand
ASUS
Warranty
1 year
Delivery Time
2 November
Condition
New
Form Factor
ATX
Memory Slots
4
Memory Type
DDR5
Part Number
90MB1PR0-M0EAY0
Socket
AM5
Product Overview
B850 MAX GAMING WIFI
B850 MAX GAMING WIFI motherboards are expertly engineered to unleash the full potential of AMD Ryzen™ 9000 series processors. The B850 MAX GAMING WIFI motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.
Performance
AI Solutions
ASUS AI Solutions include AI Cache Boost to supercharge large language model (LLM) workflows, ASUS AI Advisor as your technical expert with expertise in PC performance.
Performance
Digital power design
B850 MAX GAMING WIFI features an 8+2+1 phase digital power design with discrete MOSFETs, ensuring efficient and stable power delivery for AMD processors plus steady performance for day-to-day use.
8
Vcore power
2
SOC power
1
Misc power
Model & Form Factor | ASUS B850 MAX GAMING WIFI | ATX (30.5 x 24.4 cm) |
Chipset & CPU Socket | AMD B850 | Socket AM5 (Supports AMD Ryzen™ 9000/8000/7000 Series, up to 170W) |
Memory (RAM) | 4x DDR5 DIMM (Max 256GB) | Up to 8400+ MT/s (OC) (with Ryzen 9000) Supports AMD EXPO™ & ASUS AEMP |
Expansion Slots | 1x PCIe 5.0 x16 (From CPU)* 1x PCIe 4.0 x16 (x4 mode, from Chipset) | 2x PCIe 3.0 x16 (x1 mode, from Chipset) |
Storage Configuration | 1x M.2 PCIe 5.0 x4 (CPU)* 1x M.2 PCIe 4.0 x4 (CPU)* | 1x M.2 PCIe 4.0 x2 (Chipset) 4x SATA 6Gb/s (Supports RAID 0, 1, 5, 10) |
Networking & Wireless | Realtek® 2.5Gb Ethernet (ASUS LANGuard) Wi-Fi 6E (2x2) & Bluetooth® 5.4 |
Video Outputs | 1x HDMI 2.1 (4K@60Hz) | 1x DisplayPort 1.4 (8K@30Hz) |
USB Ports (Rear Panel) | 1x USB-C (10Gbps) | 3x USB-A (10Gbps) | 2x USB-A (5Gbps) | 2x USB 2.0 |
Audio Interface | Realtek® 7.1 Surround Sound HD Audio CODEC (Audio Shielding, Premium Capacitors) |
Internal Headers | Thunderbolt™ (USB4®) header | 1x Front USB-C (5Gbps) | 3x ARGB Gen 2 headers | 6x Fan/Pump headers (1x CPU, 1x OPT, 1x AIO, 4x Chassis) |
DIY & Special Features | Pre-mounted I/O Shield | BIOS FlashBack™ Button | Q-Antenna | Q-LED Core | Flexible M.2 Heatsink |
