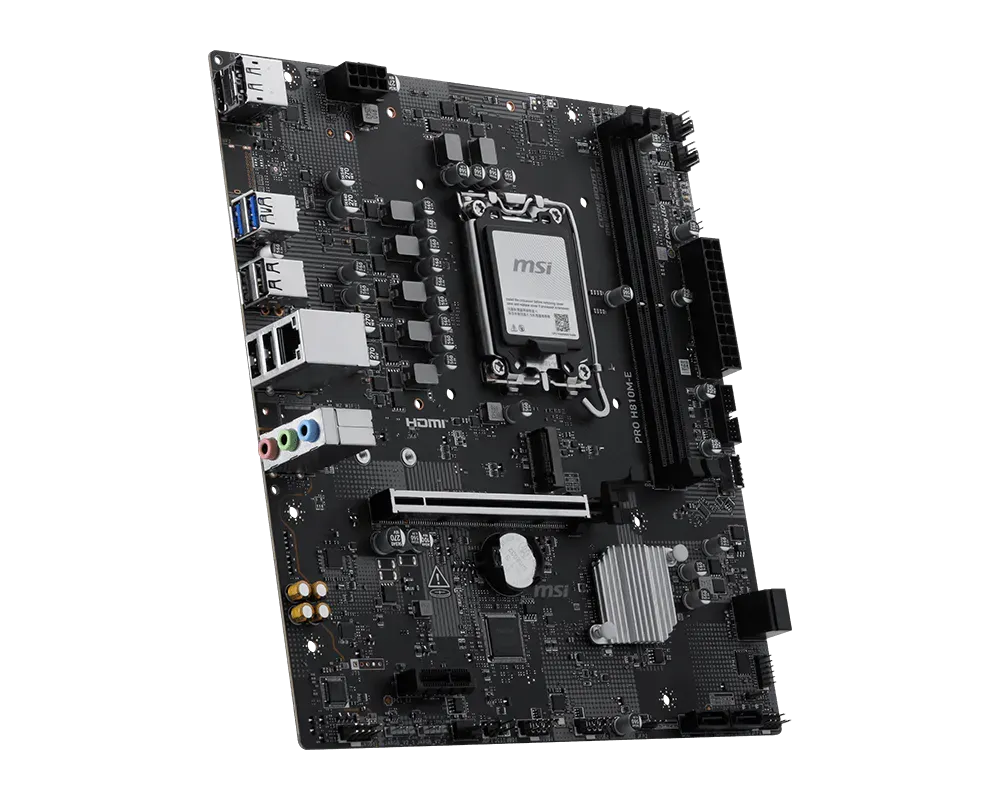

MSI PRO H810M-E Intel Core Ultra LGA1851 Micro-ATX Motherboard
AED380
Brand
MSI
Warranty
1 year
Delivery Time
2 November
Condition
New
Form Factor
Micro-ATX
Memory Slots
2
Memory Type
DDR5
Part Number
911-7E72-001
Socket
LGA1851
Product Overview
Model & Form Factor | MSI PRO H810M-E | Micro-ATX (mATX, 220 x 243.84 mm) |
Chipset & CPU Socket | Intel® H810 | LGA 1851 (Supports Intel® Core™ Ultra Processors - Series 2) |
Memory (RAM) | 2x DDR5 UDIMM (Max 128GB) | Up to 6400 MT/s Supports CUDIMM & Dual-Controller Dual-Channel |
Expansion Slots | 1x PCIe 5.0 x16 (From CPU) 1x PCIe 4.0 x1 (From Chipset) |
Storage Configuration | 1x M.2 PCIe 4.0 x4 (From Chipset, supports 2280/2260) 4x SATA 6G |
Networking | Realtek® 8125D 2.5Gbps LAN |
Video Outputs | 1x HDMI 2.1 (4K@60Hz) | 1x DisplayPort 1.4 (4K@60Hz) |
USB Ports (Rear Panel) | 2x USB-A (5Gbps) | 4x USB 2.0 |
Internal USB Headers | 1x USB-C (5Gbps) | 2x USB-A (5Gbps) | 4x USB 2.0 |
Audio Interface | Realtek® ALC897 Codec (7.1-Channel HD Audio) |
Internal Headers / Misc | EZ Debug LED (x4) | EZ Memory Detection LED | 3x Addressable V2 RGB headers | 3x Fan Headers (1x CPU, 2x System) |
