MSI B650M PROJECT ZERO Back Connect AMD B650 ATX Motherboard, DDR5
AED1,049
Brand
MSI
Warranty
1 year
Delivery Time
2 November
Condition
New
Form Factor
Micro-ATX
Is Back Connect
1
Memory Slots
4
Memory Type
DDR5
Part Number
911-7E09-003
Socket
AM5
Product Overview
| Chipset | AMD B650 |
|---|---|
| CPU | Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors Socket AM5 |
| Memory | 4x DDR5, Maximum Memory Capacity 256GB
|
| Onboard Graphics | 1x HDMI™ 2.1 with HDR (Max 4K 60Hz*) *Available only on processors featuring integrated graphics. |
| Expansion Slots | 1x PCI-E x16 slot (PCI_E1 Gen PCIe 4.0 from CPU) - Supports x16 (Ryzen™ 9000/ 7000) - Supports x8 (Ryzen™ 8700/ 8600/ 8400) - Supports x4 (Ryzen™ 8500/ 8300) 1x PCI-E x1 slot (PCI_E2 Gen PCIe 3.0 from Chipset) |
| Audio | Realtek® ALC897 Codec 7.1-Channel High Definition Audio Supports up to 32-Bit/384 kHz playback on front panel |
| Storage | 2x M.2 slots (From CPU): *M.2_2 unavailable when using Ryzen™ 8500/ 8300 Series processors. |
| RAID | Supports RAID 0, 1, 10 for SATA* *SATA_A1_A2 do not support RAID function. |
| USB | Rear: 1x 20Gbps (Type-C), 1x 10Gbps (Type-C), 3x 10Gbps (Type-A), 2x 5Gbps (Type-A), 2x USB 2.0 Front: 1x 10Gbps (Type-C), 2x 5Gbps (Type-A), 4x USB 2.0 |
| LAN & Wireless | Realtek® RTL8125BG 2.5Gbps LAN AMD Wi-Fi 6E (M.2 Key-E pre-installed) Supports 2.4/5/6GHz, Bluetooth® 5.3 |
| Internal I/O | Power: 1x 24-pin ATX, 2x 8-pin CPU Fans: 1x CPU, 1x Pump, 3x System Fan LED: 3x Addressable V2 RGB, 4x EZ Debug LED Other: 1x TPM 2.0, 1x Chassis Intrusion, 1x Front Audio |

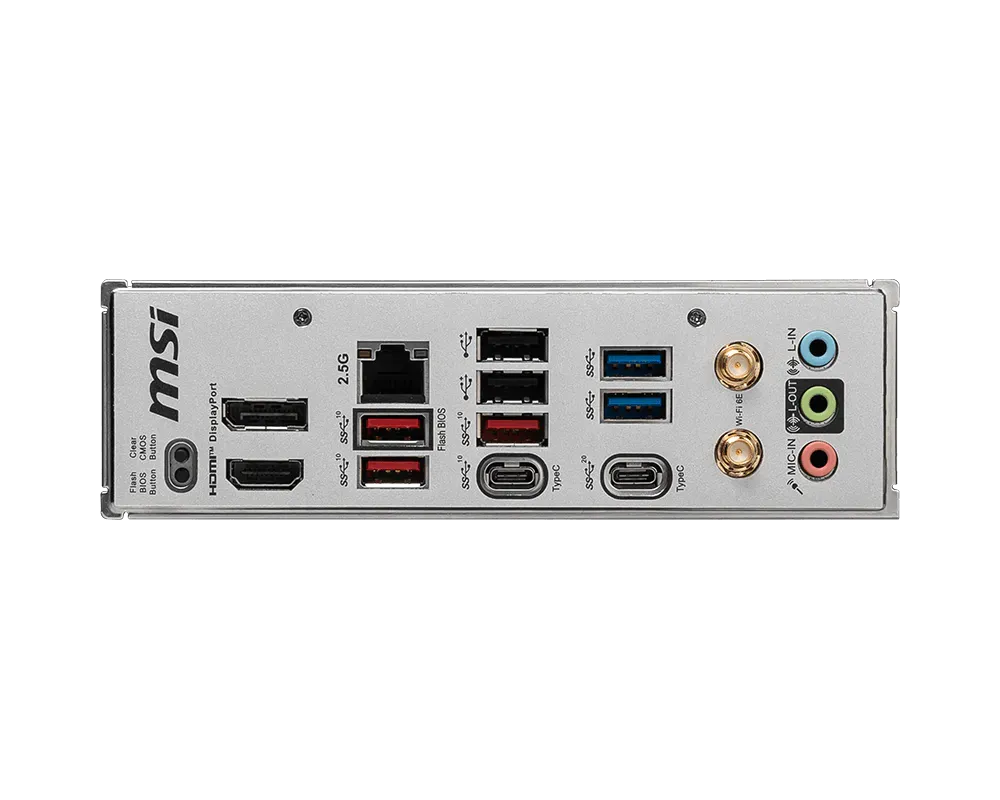

| Back Panel Ports | DisplayPort, HDMI™, Flash BIOS Button, Clear CMOS Button, 2.5G LAN, Wi-Fi/BT, Audio Connectors, Various USB (2.0, 5Gbps, 10Gbps, 20Gbps) |
| Operating System | Support for Windows® 11 64-bit, Windows® 10 64-bit |
